Maximizing material yield in thermoforming starts long before you load a sheet into the machine — it’s engineered into your tooling, part geometry, and gauge selection from day one. By treating yield as a design parameter instead of an after‑the‑fact cost metric, you can turn scrap into a competitive advantage across your thermoforming lines.

Why Material Yield Matters

Material is the largest variable cost in a thermoforming operation, while labor and equipment are mostly fixed, so every pound of plastic that leaves as scrap instead of sellable product is margin you gave away. Thin‑gauge packaging operations regularly range from 68–88% material utilization, and best‑in‑class, well‑engineered programs can push to 88–92%. Heavy‑gauge applications will usually run slightly lower, but disciplined tooling and process control still make 75–80% yield achievable.

The difference between “acceptable” yield and “optimized” yield is typically a chain of upstream decisions: part geometry, draw ratio, nesting strategy, plug assist, sheet gauge, and trim design. When you improve those levers together, even a 5% yield gain on a single high‑volume program can pay back a tooling refresh in under a year.

Where Scrap Comes From

To improve yield, you first need clarity on how material leaves your process. Most thermoforming operations see scrap in three main buckets:

Skeleton scrap: The web remaining after trim, often 12–20% of sheet area in a solid layout and 30%+ in a poorly nested tool.

Process scrap: Parts rejected for thinning, dimensional misses, or cosmetic defects, typically driven by unstable settings or plug performance, not just geometry.

Regrind loss: Material that can’t be reused because of end‑market restrictions or blend‑percentage limits.

Once you know which bucket dominates, you can prioritize the right lever — tooling layout, process stability, or regrind strategy — instead of treating yield as a single generic percentage.

Nesting: More Parts Per Sheet

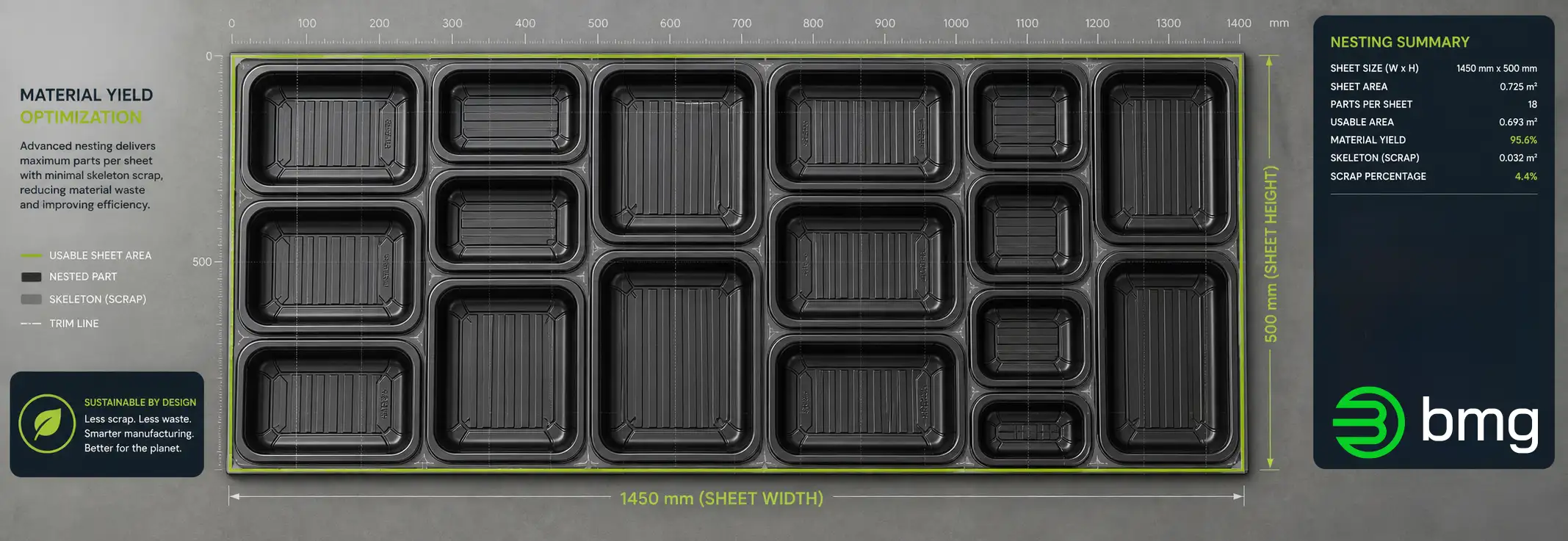

Nesting optimization is one of the most direct ways to reduce skeleton scrap and boost material utilization. Before you cut tooling, run cavity orientation scenarios (0°, 90°, and mirrored variants) and calculate sheet area per part for each; the spread between best and worst layouts on non‑symmetric parts is often 3–8%.

Cavity pitch — your center‑to‑center spacing — is a key geometric variable. Tightening pitch increases parts per sheet but reducing the web too far risks web tears and uneven heating zone loading during forming. For typical thin‑gauge HIPS and PET packaging, a practical between‑cavity web is approximately 0.25–0.375 inches, while PP generally needs more generous spacing due to lower hot‑tack strength.

For round or near‑round parts, hexagonal (W-pattern or offset‑row) nesting can recover 8–15% additional area compared with a rectangular grid by staggering alternate rows by half a cavity pitch. This pattern adds complexity for plug assist, trim, and downstream stacking, but for high‑volume circular packaging it’s often worth the tooling effort.

Finally, nesting must align with your heater zoning. A layout that maximizes sheet utilization but creates uneven thermal loading will simply shift scrap from skeleton to process rejects, so overlay candidate nests on your machine’s heater zone map before you commit.

Draw Ratio: Engineering the Form

Draw ratio is an upstream driver of both material yield and gauge. It defines how much the sheet is stretched during forming, which in turn determines wall thickness distribution and thinning risk. When part depth exceeds what the material can support at the target gauge, the usual reaction is to increase sheet thickness — a cost transfer baked into every cycle for the life of the program.

Area Draw Ratio (ADR) is one of the most practical metrics to evaluate thinning risk: it compares the surface area of the formed part with the footprint of the sheet area feeding that cavity. Typical thermoformed packages fall in the 1.5–3.5 ADR range, depending on geometry, and you can calculate ADR in under an hour using CAD surface data.

Small changes in depth‑to‑width ratio can deliver meaningful yield gains. A 10% reduction in draw depth or a slightly wider footprint at the same depth reduces ADR, improves corner wall thickness, and often allows a 5–8% gauge reduction with stable structural performance. The key is aligning part designers and tooling engineers before geometry is frozen, so draw ratio is treated as a design constraint, not a late‑stage problem.

Sheet Gauge: The Quiet Cost Driver

Over‑gauging is one of the most expensive and least‑discussed yield killers in thermoforming. It typically stems from conservative launch specs, a desire to absorb process variation, or designs that were never recalibrated once real‑world data was available.

The right approach starts with the finished part, not the sheet. Define your minimum wall requirements, then estimate expected thinning at high‑draw locations based on ADR and plug assist strategy. For thin‑gauge HIPS packaging, corner walls after forming are often 30–40% of incoming gauge without plug assist and 50–60% with a well‑engineered plug. That difference drives a very different gauge specification — for example, a 0.012" minimum corner wall may require 0.030–0.040" sheet without plug assist but only 0.020–0.024" with optimized plug design.

Material choice also matters. A recent industry study found that specifying thermoform‑grade sheets with tighter thickness tolerance cut scrap by roughly 30%, because processors no longer needed to “pad” gauge for the thin end of a wide tolerance band. Running an annual gauge‑to‑yield sensitivity calculation — how much cost changes per thousand parts for each 0.001" gauge shift — helps identify when a conservative spec can be safely reduced on a mature, stable program.

Plug Assist: Putting Material Where You Need It

Plug assist tooling is one of the most powerful tools for controlling wall thickness and enabling gauge reduction. By pre‑stretching the heated sheet into the cavity before vacuum or pressure completes forming, the plug moves material from the base up into corners and sidewalls where thinning tends to concentrate.

For deeper features — typically a height‑to‑diameter ratio above about 0.7:1 on many polymers — plug assist moves from “optional” to “mandatory” if you want acceptable wall distribution. Without it, thinning at corners is often too severe to fix with any practical gauge increase. Conversely, a poorly designed plug can waste material at the base while still leaving sidewalls thin, forcing over‑gauging and undermining your yield.

Two parameters matter most: penetration depth and clearance. Deeper penetration pulls more material into the cavity before vacuum finalizes forming, improving sidewall thickness — but too deep and the base becomes too thin. Clearance, the gap between plug and cavity wall, should be at least about 1.5 mm (roughly 1/16") per side; too tight and you pinch the sheet, creating stress lines, too loose and the plug loses effectiveness. Programs that intentionally optimize plug geometry, material, penetration, and clearance often achieve 10–15% gauge reductions while holding all structural targets.

Regrind: Turning Skeleton Into Value

No tooling layout eliminates skeleton scrap; your regrind strategy determines how much of that material comes back as value. Inline systems granulate webs continuously and feed regrind directly into extrusion or blending, maximizing immediate recovery but demanding tighter controls on contamination and maintenance. Offline systems accumulate scrap for batch testing, which is often required in food and medical markets to satisfy regulatory and quality expectations.

Acceptable regrind percentages vary by material and end market. General‑purpose HIPS packaging might safely run 15–30% first‑pass regrind, while food‑contact PET is constrained by FDA pathways and PP for medical packaging is typically near zero. Multiple‑pass regrind should be treated as a more restricted stream, because each melt history lowers molecular weight and impact performance.

Machine Settings: Protecting Your Yield Ceiling

Even the best‑engineered tooling will fail to reach its potential if settings are misaligned. In thermoforming, uneven sheet temperature directly translates into non‑uniform wall thickness — hot zones stretch more, cold zones less — driving defects and scrap. Setting and maintaining heater zone profiles that account for cavity layout, material opacity, and edge effects is therefore a critical, high‑leverage task.

For pressure‑assist and plug‑and‑pressure forming, timing matters. Ideally, plug stroke should complete to within a few millimeters of full penetration before forming pressure reaches roughly half of its final value; if pressure engages too early, the plug can’t effectively redistribute material. In heavy‑gauge work, it’s also important to confirm sheet sag and clamp frame performance before blaming plug design or gauge: asymmetry driven by sag is best addressed with tension or pre‑blow adjustments rather than cutting new tooling.

Common Defects That Drive Scrap

Understanding typical defect modes and their tooling‑level fixes can quickly reduce process scrap. Three categories frequently show up on thin‑gauge lines:

• Smile lines and flow lines: curved stress marks along sidewalls often trace back to uneven sheet temperatures, heater gaps, or zone boundaries that fall inside the forming area. Moving boundaries outside the cavities and checking individual heater elements can dramatically cut these defects.
• Plug‑related flow lines can usually be mitigated by softening plug nose radius, adjusting surface finish, or switching to lower‑conductivity plug materials such as syntactic foam.
• Corner thinning: the most common deep‑draw reject, driven by draw ratio, plug performance, and draft angle. Increasing inside corner radii — for example, from 0.5 mm to 2.0 mm — often reduces thinning by 15–25% without any visible change to the end user.
• Web tears during trim: tears at or after trim indicate webs too narrow to carry load or punch/die geometries that concentrate stress. Adding radius to trim punch corners, confirming punch‑to‑die clearance at roughly 8–12% of sheet gauge per side for many HIPS applications, or increasing minimum web width in nesting can substantially reduce web‑related scrap.

By tying defects back to specific tooling and process adjustments, you can improve yield instead of chasing issues one batch at a time.

A Practical Yield Checklist

High‑performing plants don’t treat yield improvement as a one‑time project — they treat it as an annual discipline. At One BMG, we see packaging engineers get the best results when they use a concise checklist at launch and revisit it each year on active programs. Core checkpoints include:

• Simulate cavity nesting in at least three orientations before tooling is finalized.
• Set cavity pitch based on minimum viable web width for the material, not a conservative default.
• Evaluate hexagonal nesting for round or near‑round parts where volume justifies complexity.
• Confirm heater zone boundaries fall outside active forming areas.
• Specify plug geometry based on ADR and draw depth, not copied assumptions from prior jobs.
• Verify plug clearance around 1.5 mm per side in the machined tool.
• Work backward from minimum wall requirements to sheet gauge rather than forward from legacy specs.
• Calculate ADR before cutting tooling and confirm material elongation at break for high draw ratios.
• Specify thermoform‑grade sheet with tight thickness tolerance instead of commodity stock.
• Set and control regrind limits per material and market requirements.
• Validate plug timing sequence against pressure curves.
• Track process scrap by defect type separately from skeleton scrap.

Embedding this type of structured review into your standard launch and optimization process ensures your material yield moves steadily closer to its attainable ceiling.

Frequently Asked Yield Questions

What’s a realistic material yield target?
For thin‑gauge, or roll‑fed packaging on straightforward tray or rectangular geometries, 85–90% yield is a realistic target when nesting, gauge, and process are all aligned. Programs running below about 80% on simple shapes typically have recoverable loss in more than one area — often nesting, gauge selection, and process scrap. For round parts with hexagonal nesting and optimized plug assist, 88–92% is attainable.

How does draw ratio affect gauge reduction?
Draw ratio and sheet gauge are tightly coupled: deeper draws relative to part width increase total stretch, producing thinner corners and sidewalls at a given gauge. The most efficient sequence is to reduce draw ratio where geometry allows, tune plug design around the updated depth, then evaluate gauge reduction based on first‑article wall data. In many packaging applications, a 10% reduction in draw ratio opens the door to a 5–8% gauge reduction, but it’s important to confirm with trial runs before fully committing to the lower thickness.

When is plug assist required?
Plug assist becomes effectively mandatory when the height‑to‑diameter ratio of the deepest feature exceeds roughly 0.7:1 on materials like HIPS and ABS, because vacuum‑only forming will concentrate thinning in corners and upper sidewalls beyond practical correction by gauge increase. For PP, which has a narrower safe draw window, plug assist is often recommended above about 0.5:1 height‑to‑diameter. If you’re already using plug assist and still seeing corner thinning, the issue is usually not whether you need a plug, but whether geometry, material, penetration depth, and timing are correctly specified.

Download BMG's e-Books

To make these concepts actionable, One BMG offers a selection of e-Books tailored for packaging engineers who are ready to move from rules of thumb to data‑driven decisions.

Introduction to Thermoforming

Thermoformed Product Design

Trim Press Cycles: What to Expect & When

Thermoforming: Keeping Berries Safe & Fresh

Put these tools to work on your next launch or retrofit. When you’re ready to push your material yield closer to the 88–92% range, our thermoforming tooling and equipment teams are here to support you from design through full‑scale production.
