End-of-line automation in thermoforming only performs to plan when your mold, forming machine, and downstream systems are engineered together as one integrated line. When automation is designed separately, you inherit fixed geometry decisions that drive up cost, extend commissioning, and permanently cap throughput.

What End-of-Line Automation Really Includes

In thermoforming, end-of-line automation covers every step from the trim station exit to a palletized load ready for shipment. It is not a single machine, but a coordinated sequence of systems:

• Post-trim transfer that captures parts as they leave the trim press
• Stacking, counting and bagging systems that build stable, accurate stacks
• End-of-arm tooling (EOAT) that picks and places parts at speed
• Vision inspection for dimensions and defects
• Inline granulation for skeleton scrap
• Case packing and palletizing

Each stage depends directly on three tooling decisions: part geometry, draft angle, and cavity pitch. These parameters must be co-designed with the automation, not set in isolation during mold design.


Why Automation Fails When It Follows the Mold

Most thermoforming projects follow a familiar pattern: forming machine first, tooling second, automation last. By the time an automation supplier sees the part, cavity pitch, draft angles, and flange geometry are already locked in. The result is a line that runs, but never at its business-case rate.

Typical failure modes include:

• Cavity pitch that does not match standard stacker or magazine spacing, forcing custom widths and extended lead times.
• Draft angles that work for mold release but produce unstable stacks, inconsistent nesting depth, and frequent mis-stacks.
• Flange widths or sealing surfaces that are too narrow, warped, or non-planar for reliable vacuum cup sealing.

The timing of the problem discovery drives cost. A pitch issue solved on paper costs an engineering hour. The same issue found during commissioning adds weeks of rework, custom fabrication, and on-site troubleshooting.


The Thermoforming Automation Stack

A high-performance thermoforming line uses an integrated automation “stack” from forming station to palletizer. Each stage has specific inputs that must be defined at tooling design:

The initial handoff from a non-servo trim press is often the most challenging. BMG’s NAS Mantis Robotic Trim Press Handler was developed for exactly this point in the line, capturing and counting stacks as they eject, then handing them off for robotic pick-and-place without relying on long-eject or servo presses.

Inline granulation runs in parallel with part handling, continuously feeding skeleton scrap into an open-rotor granulator sized to match line throughput; this can recover 20–40% of sheet mass as usable regrind while eliminating skeleton handling labor and floor-space-heavy scrap accumulation.

At the end of the sequence, automated case packing and collaborative palletizing cells close the loop. BMG’s automation portfolio, developed under the NAS brand, includes case packers and palletizing systems configured for cups, containers, lids, plates, and trays, engineered to deliver high vertical reach in a compact footprint.

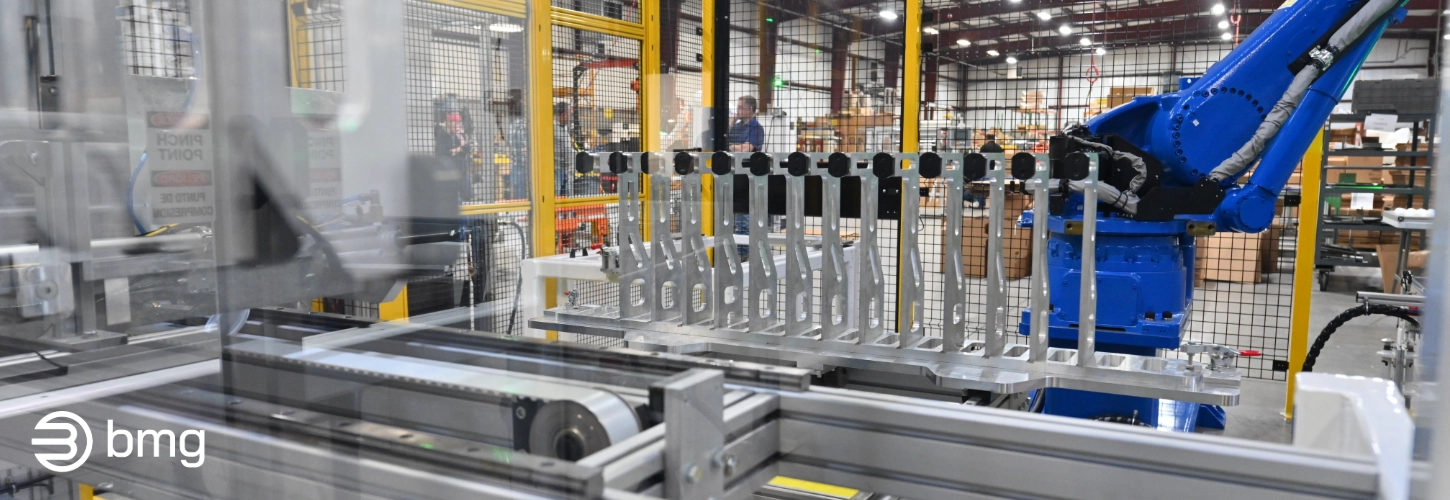

EOAT: The Critical Bridge Between Mold and Robot

End-of-arm tooling is where mold geometry meets robot motion. Any misalignment between cavity layout and EOAT design shows up here first as missed picks, leakers, or deformed parts.

For multi-cavity tools, EOAT requirements should drive early tooling decisions:

• Cavity pitch must match EOAT pick positions exactly — otherwise every pick is a compromise or requires a pitch-changing mechanism that adds cost and payload.
• Vacuum cups need a continuous, planar sealing surface, typically 6–12 mm wide, with rim flatness controlled after cooling.
• Flange width and part rigidity in the pick zone determine whether the EOAT can pick consistently without deflection.

When vacuum EOAT is not feasible — such as open-top shapes with inaccessible rims, perforated parts, or deep draws — mechanical grippers take over but introduce cosmetic and dimensional risk. That tradeoff should be made in design, not on the floor under time pressure.

BMG’s engineering team designs EOAT alongside mold geometry from shared part models, allowing flange width, draft, and cavity pitch to be optimized for handling from the beginning.


Stacking and Counting: Geometry Drives Uptime

Stacking and counting are where small geometry choices either pay off or shut the line down.

For reliable automated stacking:

• Minimum sidewall draft should be at least 3°, with 5° preferred for deeper draws and tall stacks.
• Nesting clearance should be in the 1.5–2.5 mm total diametral range.
• Rim flatness at the seating surface should be at or below 0.3 mm at ambient.

When draft is too shallow or there is an undercut at the base, parts may hang up or nest at variable depth. This inconsistency translates into irregular column pitch, jammed stacking tubes, and count errors. Mechanical sensors work well when nesting depth is consistent, while vision-based counting is preferred for shallow draws or when simultaneous defect detection is required.

Robotic Destacking and Feeding

Destacking separates individual parts from a nested column and feeds downstream equipment such as FFS lines, cartoners, labelers, or fillers. A single missed pick here can stop the entire production line, so reliability requirements are especially high.

Tooling design supports destacking in three key ways:

• Nesting depth of at least 8 mm for mechanical separation.
• Controlled stack height that matches EOAT vacuum capacity at the target pick rate, often in the 25–50 part range.
• Sufficient flange clearance (around 3 mm at the exposed rim) so the EOAT engages only the part being removed.

Robot selection depends on application:

• Delta robots dominate high-speed picking, often reaching 120–150 picks per minute for light parts in a compact footprint.
• SCARA robots offer higher precision in horizontal placement, ideal for tray loading.
• Six-axis robots support complex reorientation tasks at slower speeds and higher unit cost.

NAS deploys Motoman robotic platforms, matching robot kinematics to the exact loading pattern and speed requirement rather than forcing a single robot family into every cell.

Inline Scrap and Trim Handling

Effective skeleton handling is a major lever for both labor and material efficiency. As the trimmed web exits the press, it must leave the trim zone cleanly while maintaining access for part ejection and post-trim handling.

Modern systems prioritize:

• Direct-to-granulator or automatic roll-change web handling to eliminate a dedicated skeleton operator.
• Inline granulation sized to match former output so scrap never backs up into the press, especially on thin-gauge PET, PP, and PS.
• Open-rotor granulators with flat-web infeed for stable processing and high-quality regrind.

Single-stream processing at known temperature produces more consistent regrind than offline accumulation and significantly reduces the footprint required for scrap management.


BMG’s Turnkey Thermoforming Approach

What differentiates BMG is its ability to engineer thermoforming, tooling, and automation as one system under a single organizational roof.


Under the onebmg.com platform, BMG unifies:

• Forming machines: Brown, Lyle, and GN lines covering plastic and paper thermoforming.
• Tooling: Freeman and GN tooling for thin-gauge, high-volume applications.
• Automation: NAS and aXatronics for trim press handling, stacking, counting, case packing, palletizing, and custom robotics.

With all three disciplines aligned, draft angles, flange geometry, stack height, and robot reach are designed in concert rather than reconciled during commissioning.

In practice, this integration shortens ramp-up times. Typical BMG turnkey systems reach qualified production rates within two to three weeks of startup, while multi-vendor lines often require four to eight weeks of on-site engineering to resolve integration issues.


Automation Readiness: Quick Geometry and Layout Check

Before specifying automation, validate your line against these readiness questions. Any “no” indicates a design risk that should be addressed before equipment is ordered:

• Are inside walls drafted at 3° or more, and at least 5° for deep stacks?
• Does the seating rim meet 0.3 mm or better flatness at ambient?
• Is the vacuum sealing surface at least 8 mm wide around the full perimeter?
• Does the base ID clear the mating rim OD by at least 1.5 mm in total diametral clearance?
• Is nesting depth at least 8 mm for destacking applications?
• Does the part remain dimensionally stable under 1.5× the EOAT vacuum pick force?
• Has cavity pitch been aligned with standard automation module spacing or intentionally justified if non-standard?
• Is there at least 2,000 mm of clear floor space downstream of the trim press exit for initial handling?
• Are 480V three-phase power and clean, dry air at or above 80 PSI available at automation locations?
• Have guarding, light curtain, and emergency stop locations been planned per ANSI/RIA R15.06?

If you are unsure whether your current tooling meets these criteria, BMG’s thermoforming tooling resources and automation checklists provide a structured way to evaluate readiness and identify any required design changes before automation is scoped.

Contact BMG to review your current specifications so your system runs flawlessly from the start.
