GN800

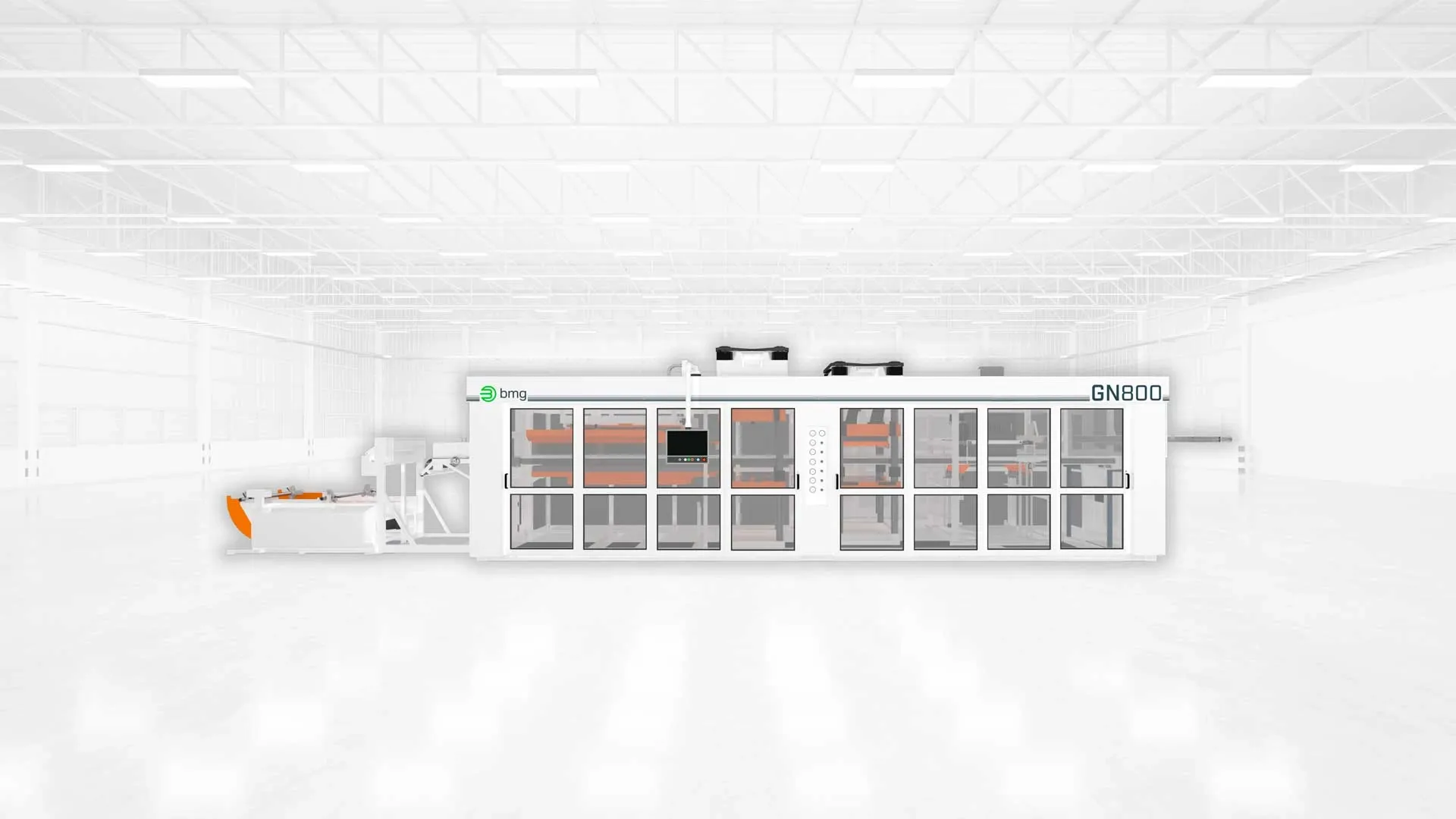

GN800 high-speed, plug-assist, form-cut-stack thermoformer

The GN800, another of BMG’s custom-configured production solutions, offers a category-leading high-speed, plug-assist, form-cut-stack thermoformer with a unique optional punch station that can be designed into the existing structure. All of these unique features are designed and engineered with our customers' end use in mind. We don’t just assemble off-the-shelf prefab technology to keep the inventory moving; we engineer and create custom configurations that fit our customers' needs to a “T.” This engineering marvel is designed to perform beyond expectations using fully integrated servo controls throughout–including the movable top and bottom platens for precise forming and cutting of parts. This innovative BMG solution sets the stage for precise forming and cutting of parts and offers a bigger-than-average platen configuration for larger customer needs. With the input of customers and toolmakers, BMG developed the GN800 to provide industry-leading, cost-effective, and high-speed part production that leads in all categories. The most distinctive features of the GN800 are the high degree of automation as well as the easy-to-use tool change system, which reduces downtime for machine reset. Time is money, and BMG realizes the need for speed and functionality.

This all-star can handle it all, capable of forming CPET, PET, PP, HIPS, OPS, PVC, and more blends, including CPLA, PLA, and other biodegradable materials. If you are looking to be able to realize and tell a better sustainability story, while lessening your carbon footprint, then this engineering masterpiece can be the answer to your current and future needs. The GN915 is exceptionally flexible and can be combined with scrap grinders, padding systems, and inline packing systems to complete your production custom-configured thermoforming line.

Benefits of Our Packaging Solutions

Multi-Purpose Thermoformer for Food, Medical, Consumer Goods and other packaging applications

Precision Forming and Cutting of Products

More useable forming area for higher production than competitor machines in same size class

Cost Effective, High Speed Production Output

Capable of using all plastic material including biodegradeable materials

Easy-to-Use Fast Tool Change System

Accepts competitor tooling

Various stacking configurations for increased flexibility including A/B and A/B/C

Servo driven chain rails with matched pin chain

Lowest plastic web scrap rate*

*When combined with GN common edge tooling

Robust Built Design for Reduced Downtime

Supported by BMG's Industry Leading Service

Machine Video

Machinery Features:

Forming 150mm (5.9") Above and Below Sheet Line

Above and below sheet line

Operator- Friendly HMI with Integrated Diagnostics and Remote Connectivity

Double Roll Holder and Motorized Material Unwind System

Multi-Zone 4-shot Oven with Infrared High Efficiency Heaters

High-tonnage Forming and Cuttings Stations

Standard In-Mould cut Capability

Optional punching station

Third Motion Top and/or bottom servo plug

Various stacking systems and configurations including robotic and upstacking

Tonnage monitoring

Servo driven chain rails with matched pin chain

CE,CSA,UL compliant

Optional equipment:

Product Lowering System for safe and ergonomic part handling

Material Pre-Heater system option for certain materials

Mould temperature control unit

Chiller


Granulator

Tooling lift cart

Padding system

Labeling system

BMG end of line automation

GN800 Specifications

Maximum Forming Area 830mm x 570mm
(32.6" x 22.4")
Depth of Draw 150mm
(5.9")
(above and below sheet line)
Clamping Force
(Form and Cut Station)
75 Metric Tonnes
(73.82 US Tons)
Cutting Force
(Form and Cut Station)
75 Metric Tonnes
(73.82 US Tons)
Sheet Width 910mm
(35.8")
Material Thickness Range 0.25mm - 2.00mm
(0.010" - 0.080")
Material Roll Diameter 1.2m
(47")
Main Supply Voltage 3 Phase+N+PE, 50-60Hz (380-480) 250 Amps
Running Power Consumption 42 Kva (Approximate)
Air Pressure (min/max) 6.2 bar (90 PSI) / 9.6 bar (140 PSI)
(Minimum / Maximum)
Cooling Water Consumption 65 - 200 litres/min
(17 - 53 gallons/min)
Machine Dimensions**
(l x w x h)
14840mm x 3500mm x 3300mm
(48'9" x 11'6" x 10'10")
Cycle Rates (max cpm) 60

*When combined with GN common edge tooling
**Depending on machine configuration and layout
