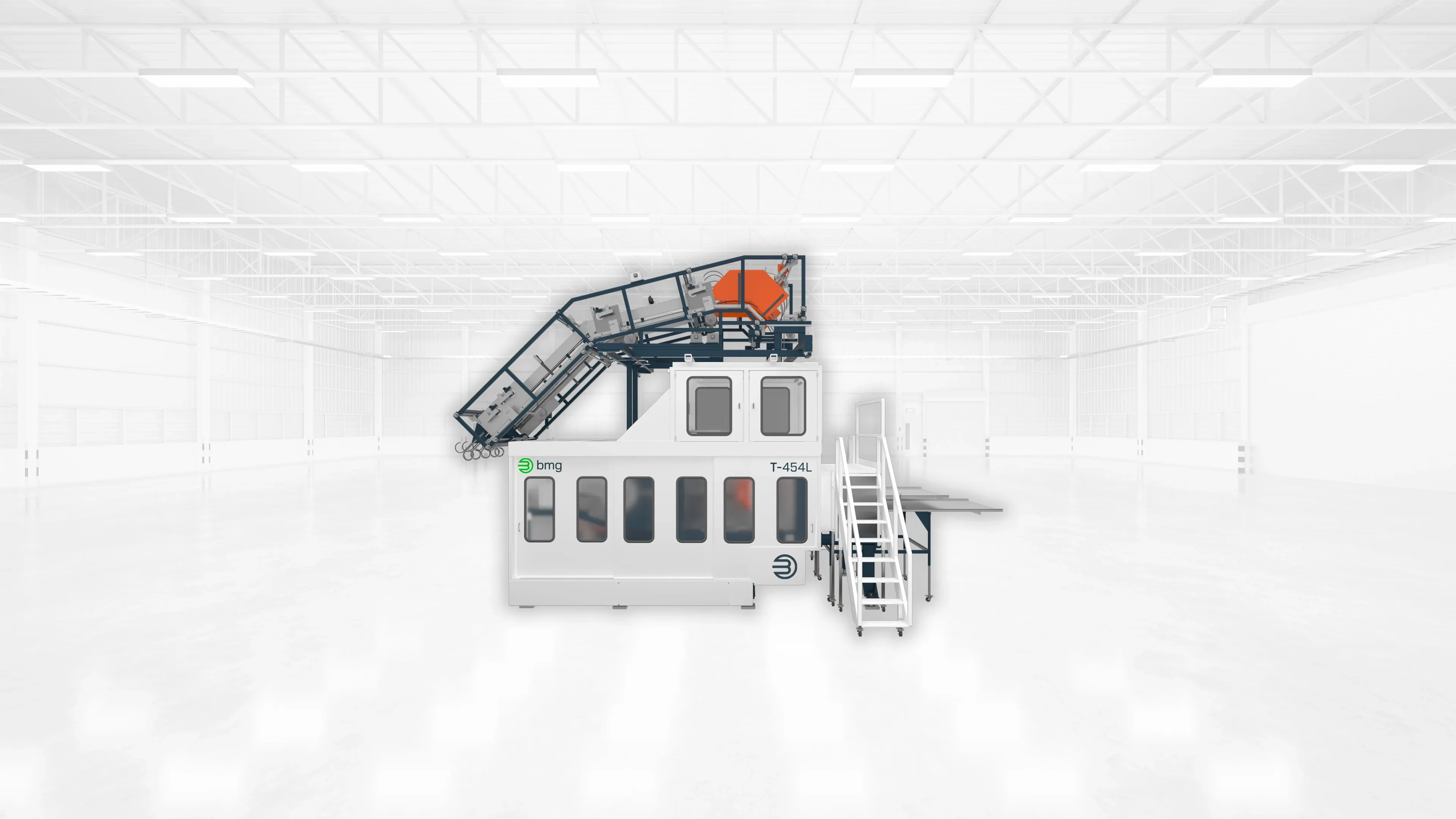

Brown® T-Series LS | LS Elite
HORIZONTAL TRIM PRESSES

Servo-Driven to Optimize Your Automation & Quick-Change Needs

Brown LS trim press sets the industry standard for speed, accuracy and flexibility. Properly equipped, the LS press will consistently run at speeds of up to 165 CPM. In addition to speed, the servo-driven LS press is configured to slow down to eject and speed up to sync with the cycle time of the thermoformer. This functionality is necessary to incorporate downstream automation and maximize your output. With the quick-change tool mode and drop-away arm features on the Elite Series, changeovers are easily achieved and can be made in 30 minutes or less. Speed, flexibility and automation compatibility all add up to the highest performing trim press on the market.

Partner the LS-Series trim press, Quad Series former with our end of line automation and tooling for an unparalleled, integrated turnkey solution.

Benefits of Our Packaging Solutions

High-speed trim operations

Trim accuracy, extended tool life and ease of maintenance

Shallow to deep draw

Machine Video

Machinery Features:

Versatile, Precise Controls

Standard with Informer™ series Mitsubishi control system

Servo Fine Tuning

The servo feed system allows infinite positioning for trimming accuracy and can be adjusted while the press is in operation

Linear Bearing Guide System

Provides precise trimming of difficult-to-cut materials and reduces trim die maintenance

Dual Flywheel and Dual Connecting Arm

For enhanced platen stability and provide superior slow- or high-speed operation

Machine Options:

Quick-Change Tool Packages

Tool Carts & Die Set Roller/Elevator Systems

EZ-Adjust Stroke (Patented)

Fine Adjust Connecting Arms (Patented)

“Drop-Away” Connecting Arm Release (Patented)

“Neutral Link” Linear Guided Counterbalance (Patented)

Treadle Lift System

Servo-Actuated Treadle System

Quick-Change Feed & Canopy Guides

Servo Ejector with Count/Eject Capabilities

Product Handler Interface

Trim Press & Tool Monitoring

Overhead Mezzanine

65 Kilo Amp Short Circuit Rating

UL, CE, CSA & HSE Approvals

International Voltages Available

Brown® T-Series LS | LS Elite Specifications
  T-330LS T-350LS T-454LS T-564LS
Maximum Trim Tonnage 30 tons 267 kn 30 tons 267 kn 40 tons 357 kn 50 tons 446 kn
Operating Speeds Up to 165 spm Up to 165 spm Up to 165 spm Up to 165 spm
Minimum Adjustable Stroke 4.5"
114 mm
4.5"
114 mm
4.5"
114 mm
4.5"
114 mm
Maximum Adjustable Stroke 13.5"
343mm
13.5"
343mm
13.5"
343mm
13.5"
343mm
Stationary Platen Opening* Width x Length 12.50” x 30”
318mm x 762mm
16.25” x 54”
413mm x 1372mm
16.25” x 58”
413mm x 1473mm
20” x 68”
508mm x 1727mm
16.25” X 30” 413mm x 762mm 20” X 54” 508mm x 1372mm 20” X 58” 508mm x 1473mm 16.25” X 68” 508mm x 1727mm
Maximum Sheet Width 35"
889mm
55"
1397mm
59"
1499mm
69"
1753mm
Air Consumption @ 80 psi† .01 scf Maximum per cycle .01 scf Maximum per cycle .01 scf Maximum per cycle .01 scf Maximum per cycle
Quick Tool Change Frame (Side Load) Standard Standard Standard Standard
Elite Series Option Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position

*Deep draw configurations available
†Air consumption does not include tooling functions
