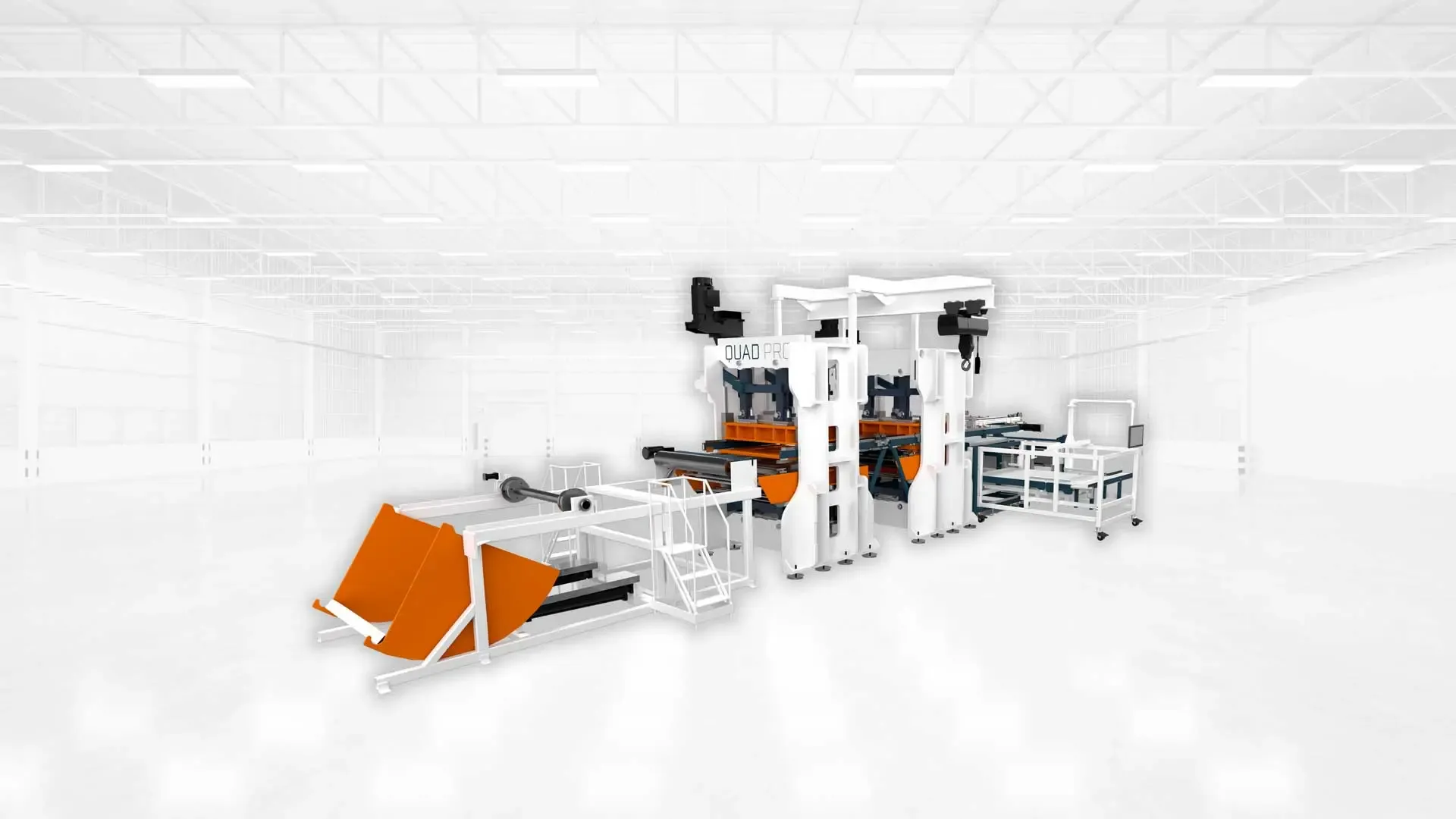

Brown QuadPro

World’s first continuous large-bed paper former

Run printed or unprinted paper | Form plates, bowls & trays

Highest Production Output & Lowest Scrap Rate in the Industry

QuadPro™ uses a patent-pending, continuous forming process to achieve the highest production output and lowest scrap rate in the industry. Multiple state-of-the-art technologies and processes were co-developed by all three BMG divisions to create the turnkey paper former of the future – today.

Highlights include: runs printed or unprinted paper with automatic continuous decurling and splice detection for easier operation; patent-pending process eliminates jams caused by blanks; cut and form in one tool with unmatched precision and consistency; intuitive touchscreen next-generation controls allow programmable and precise on-the-fly adjustments; recipe storage and recall; automated product extraction, stacking, counting and conveyance; integrated scrap handling for easy disposal; plus quick and easy tool change.

Benefits of Our Packaging Solutions

Up to 3.5x the Product Output

Over 95% Product Yield

Under 5% Product Scrap

Higher Quality & Improved Rigidity

State-of-the-Art Technology

Machine Video

Machinery Features:

Automatic Splice Detection

  • Automatically bypass score & form station
  • Faster changeover
  • Less scrap

Automatic Continuous Decurling

  • No operator adjustments needed
  • Improves product quality
  • Reduces machine jams
  • Easier overall machine operation
  • Patent pending

Servo-Controlled Score Depth Adjustment

  • No manual adjustments required
  • Easy on-screen adjustments stored in recipe for recall
  • On-the-fly adjustments reduce downtime
  • Consistent & ultraprecise score depth in increments of .0005"
  • Patent pending

Material Scoring Without Cutting Blanks

  • Blanks remain in the web for accurate indexing to next station
  • Eliminates jams caused by blanks
  • Reduces downtime
  • Increases output
  • Increases revenue
  • Improves product quality
  • Improves product consistency
  • Patent pending

Cut & Form-In-Place

  • Cut & form in one tool with a continuous controlled process
  • Precise cut concentricity creates a more consistent, higher quality product
  • Adjust compression force & dwell time on the fly with remote servo-controlled adjustments (patent pending)
  • Up to 180 tons of compression force in increments of .0005"
  • Easy on-screen dwell time adjustment

Automated Product Extraction, Stacking, Counting & Conveyance

  • Versatile on-the-fly stack count change with recipe storage & recall
  • Smooth transition of product to conveyance system
  • Downstream automation solutions available

Machine Options:

NAS downstream automation solutions

BMG’s Advanced Digital Readiness (ADR) IIoT remote connectivity & monitoring

Brown QuadPro

The future of paper forming is here. QuadPro – Run With Confidence.

Maximum Forming Area 56.00" x 52.00"
142.24cm x132.08 cm
Maximum Compression Force 180 Tons
Production Speed up to 25 CPM
Overall Length <50' (15m)
Overall Width <20' (6m)
Overall Height <13' (3.9m)
