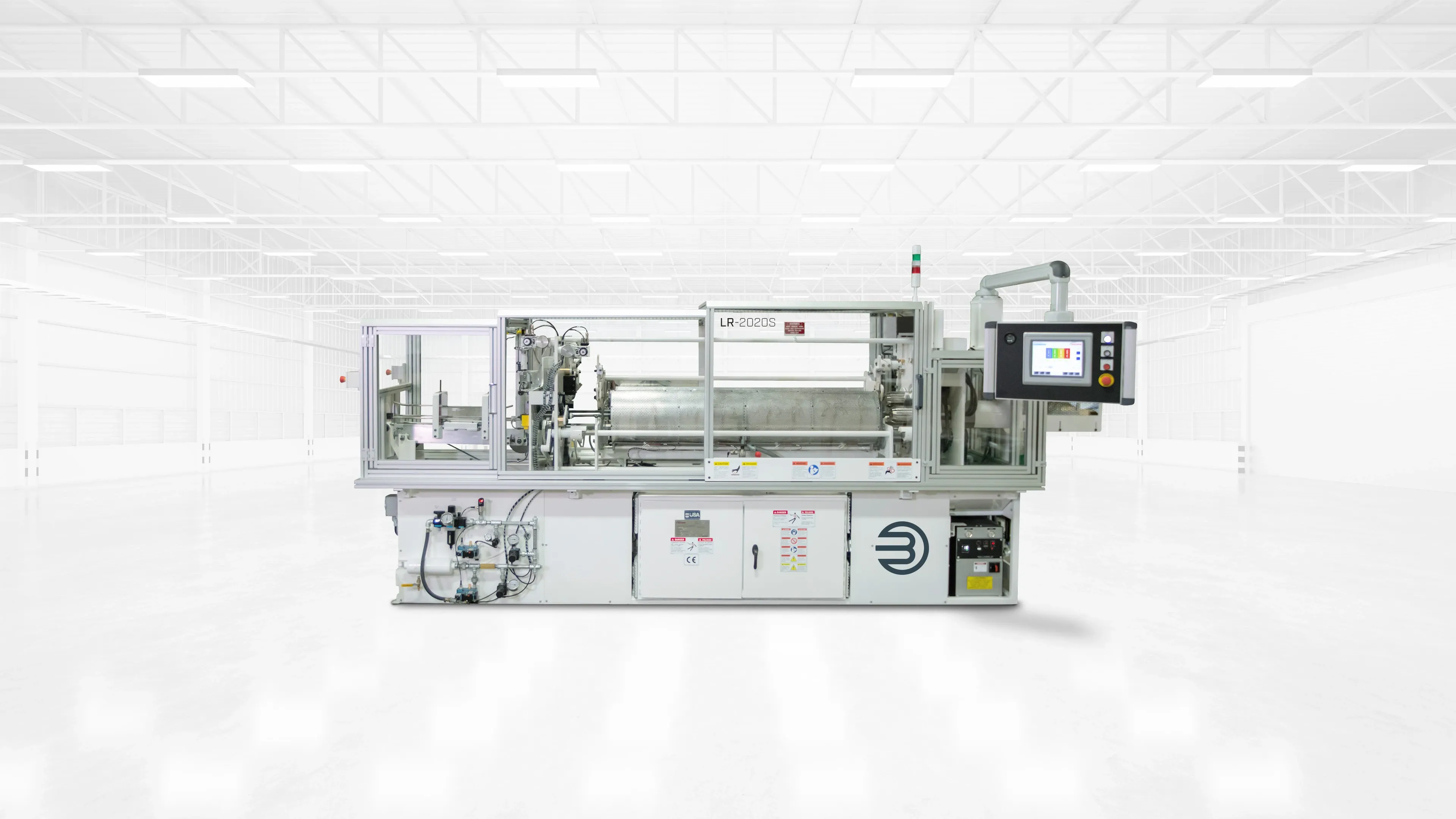

Brown® LR-Series
LIP ROLLERS

Maintain Consistent Lip Roll Optimum Fit & Finish

Brown offers lip rollers for product diameters ranging from 1.75 inches (44mm) up to 11 inches (280mm) which operate at peak speeds up to 3,500 parts per minute. So, no matter what your application, we have a solution for you. As you expect from Brown, our lip rollers are designed to safely maximize production and minimize downtime. For example, the LR-2020S is designed with servo drives controlled through the HMI allowing recipe storage for your range of products. Furthermore, the machine is easily adapted for left- or right-hand operation providing additional flexibility for your plant layout.

Since you spend less time maintaining, you’ll get more production.

Benefits of Our Packaging Solutions

Operate at peak speeds up to 3,500 parts per minute

Safely maximize production and minimize downtime

Servo drives controlled through the HMI allowing recipe storage

Easily adapted for left- or right-hand operation

Machine Video

Machinery Features:

Versatile

Various models can roll a full range of materials including Polystyrene, Polypropylene, APET, Polyethylene, and more

Machine Options:

Servo Driven Controls through HMI

Full Enclosed Guard Package

Air Regulator and Nozzle

Independent Infeed Conveyor

Product Detection Monitoring

Bottom Driven Roller

Infrared Temperature Sensor

Metered Silicone Applicators

Water Cooled Top Guide

Screw & Crowd Roller Position Indicators

UL, CE, CSA & HSE Approvals

International Voltages Available

Brown® LR-Series Specifications

	LR-2000	LR-2000S	LR-2000S-S	LR-2020S
Direction	Left or Right hand operation	Left or Right hand operation	Left or Right hand operation	Left or Right hand operation
Number of Screws	3 or 4	3 or 4	3 or 4	3 or 4
Screw Thread Length	4" (102mm)	6" (152mm)	18" (457mm)	6" (152mm)
Oven Length	32" (813mm)	64" (1626mm)	64" (1626mm)	64" (1626mm)
Oven Control Zones	Two	Four	Four	Four
Product Diameters	3 Screw Configuration 1.75" to 3" (44mm to 76mm) 4 Screw Configuration 2" to 5.5" (51mm to 140mm)	3 Screw Configuration 1.75" to 3" (44mm to 76mm) 4 Screw Configuration 2" to 5.5" (51mm to 140mm)	3 Screw Configuration 1.75" to 3" (44mm to 76mm) 4 Screw Configuration 2" to 5.5" (51mm to 140mm)	3 Screw Configuration 1.75" to 3" (44mm to 76mm) 4 Screw Configuration 2" to 5.5" (51mm to 140mm)
Product Rate (ppm)	500 to 3,500 ppm	500 to 3,500 ppm	500 to 3,500 ppm	500 to 3,500 ppm
