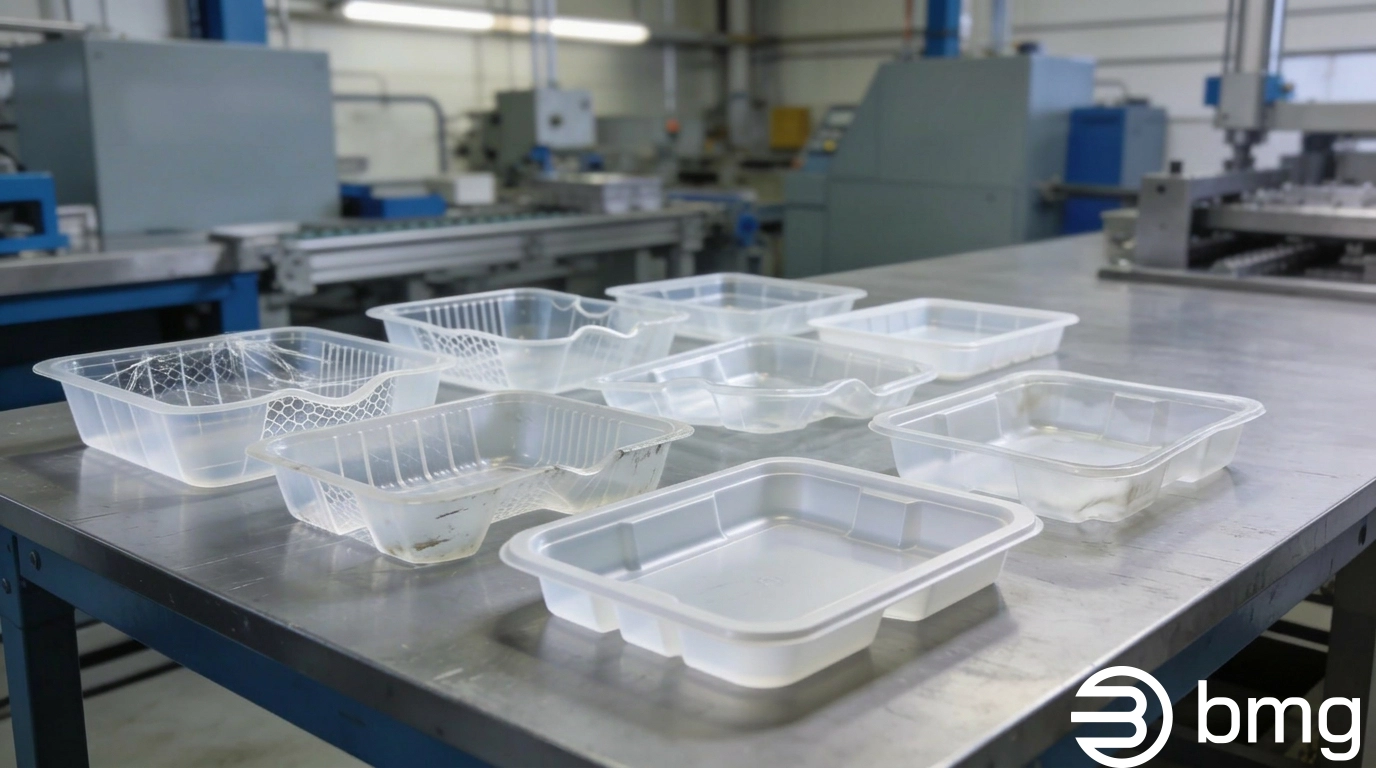

10 Common Thermoforming Defects and How to Prevent Them

Thermoforming defects drive scrap, slow production, and erode margins—but most issues can be predicted and prevented with the right process controls and tooling strategy. This guide walks through 10 common thermoforming defects, what causes them, and practical process changes you can make to improve part quality and uptime.

1. Wall Thinning in Thermoforming

What it looks like
Thin, weak areas—often in the bottom or corners of deep-draw parts—leading to failures in drop tests, load performance, or sealing.

Typical root causes	How to prevent wall thinning
Excessive draw depth and aggressive stretch ratios Uneven heater zoning creates hot and cold spots across the web Sharp corners or abrupt transitions in part and tool design	Optimize heater zoning for uniform sheet temperature, avoiding overheated centers. Use plug-assist thermoforming (and correct plug design) to move material into high-draw areas. Soften part geometry with generous radii and realistic draw ratios during thermoformed packaging design.

2. Webbing and Bridging in Thermoforming

What it looks like
Wrinkles, folds, or thin “webs” of plastic between tall features, adjacent cavities, or tight radii that create scrap and cosmetic defects.

Typical root causes	How to prevent webbing
Sheet temperature too high, causing material to flow instead of stretch cleanly Cavities or towers spaced too close together Insufficient or poorly directed vacuum, allowing material to stall and fold	Slightly reduce oven temperature or exposure time to stiffen the sheet. Increase spacing between features where possible or redesign deep valleys and tight corners. Improve venting and vacuum distribution so material is pulled smoothly into every detail.

3. Warping and Distortion of Thermoformed Parts

What it looks like
Parts curl, twist, or “potato chip,” causing stacking, sealing, or assembly problems.

Typical root causes	How to prevent warping & distortion
Non-uniform cooling across the part or between tool halves Residual stress from aggressive forming or rapid temperature changes Large, flat panels without ribs or reinforcement features	Balance cooling circuits and allow adequate cooling time before part removal. Maintain a stable forming window instead of chasing defects with large temperature swings. Integrate ribs, draft, and radii to stiffen panels in the thermoformed design stage.

4. Poor Definition and Incomplete Forming

What it looks like
Soft logos, shallow features, rounded corners, or areas that don’t fully contact the mold.

Typical root causes	How to prevent incomplete forming
Sheet temperature too low or uneven across the web Weak or delayed vacuum and pressure at the forming station Inadequate venting at tight pockets and fine features	Rebalance heater zones to keep the sheet consistently within the resin’s forming window. Verify vacuum/pressure levels, timing, and seal integrity. Add or clean micro-vents at logos, corners, and deep pockets to let trapped air escape.

5. Surface Defects: Scuffs, Chill Marks, Orange Peel

What it looks like
Visible scratches, gloss variation, chill marks, and inconsistent texture on the formed surface.

Typical root causes	How to prevent cosmetic defects
Dust, debris, or contamination on sheet, tooling, or in the forming area Cold tooling surfaces causing chill marks on first contact Mismatch between sheet texture and mold surface finish or release agents	Implement disciplined housekeeping and sheet handling procedures; clean molds on schedule. Set and stabilize mold temperature to support desired gloss and texture. Validate mold release products and application methods to avoid print-through.

6. Bubbles, Voids, and Blisters

What it looks like
Air pockets or blisters on or within the thermoformed part, often visible after forming or trimming.

Typical root causes	How to prevent bubbles & blisters
Moisture in hygroscopic materials (e.g., PET, PLA, some specialty resins) Sheet overheated beyond its recommended forming temperature Internal contamination or low-grade sheet quality	Pre-dry moisture-sensitive materials per supplier guidelines and verify moisture content. Tighten oven control to stay inside a validated forming temperature window. Specify high-quality, thermoforming-grade sheet from trusted suppliers.

7. Excess Flash and Trim Scrap

What it looks like
Excess material at the flange, irregular trim edges, or variable flange width that increase scrap and rework.

Typical root causes	How to prevent flash & trim waste
Insufficient or uneven clamping around the sheet perimeter Misalignment between forming and trim tools or incorrect index length Overheated or overly thick sheet extruding into gaps	Verify uniform chain and frame clamping force across the web. Realign forming and trim tools and fine-tune indexing at running conditions. Right-size sheet gauge and maintain consistent sheet temperature across the cycle.

8. Sheet Sag and Web Handling Issues

What it looks like
Excessive sag in the oven, inconsistent wall thickness, or sheet contacting heaters and hardware.

Typical root causes	How to control sheet sag
Overly long or hot oven settings for the material and gauge Inadequate preheat strategy or support before the main oven Unbalanced heater settings across the web width	Optimize oven time and temperature; monitor sag visually or with non-contact sensors. Use pre-heat zones to manage sheet softening before entering the main oven. Balance heater zones to avoid center-hot or edge-hot conditions.

9. Misregistration and Trim Alignment Problems

What it looks like
Formed parts don’t align correctly with the trim station—resulting in off-center cuts or thin/over-cut flanges.

Typical root causes	How to improve registration & trim accuracy
Incorrect index length, drift, or instability in indexing control Thermal expansion not accounted for in registration settings Wear in chains, sprockets, or registration sensors	Validate and lock in index parameters at full production temperature and speed. Use registration features (print marks, pilot holes) for high-precision parts. Maintain drive components and sensors to eliminate mechanical play and drift.

10. Inconsistent Forming Across Cavities

What it looks like
Some cavities form correctly while others show shallower draws, variable wall thickness, or poor detail within the same tool.

Typical root causes	How to stabilize multi-cavity forming
Uneven heating across the web width or length Tooling not level or inconsistent cooling flow from cavity to cavity Non-uniform vacuum channel design or partially blocked vents	Map heater performance and rebalance zones using test runs and temperature checks. Level the tool and verify cooling circuit flow and temperature at each cavity. Inspect and clean vacuum channels and vents and rebalance distribution if needed.

Turning Thermoforming Defects into a Process Advantage

Every thermoforming defect—wall thinning, webbing, warping, or misregistration—is a signal about how the sheet, tooling, and machine are interacting. By treating defect reduction as a structured thermoforming troubleshooting process, you can cut scrap rates, stabilize cycle times, and unlock higher overall equipment effectiveness across your forming and trimming operations.
