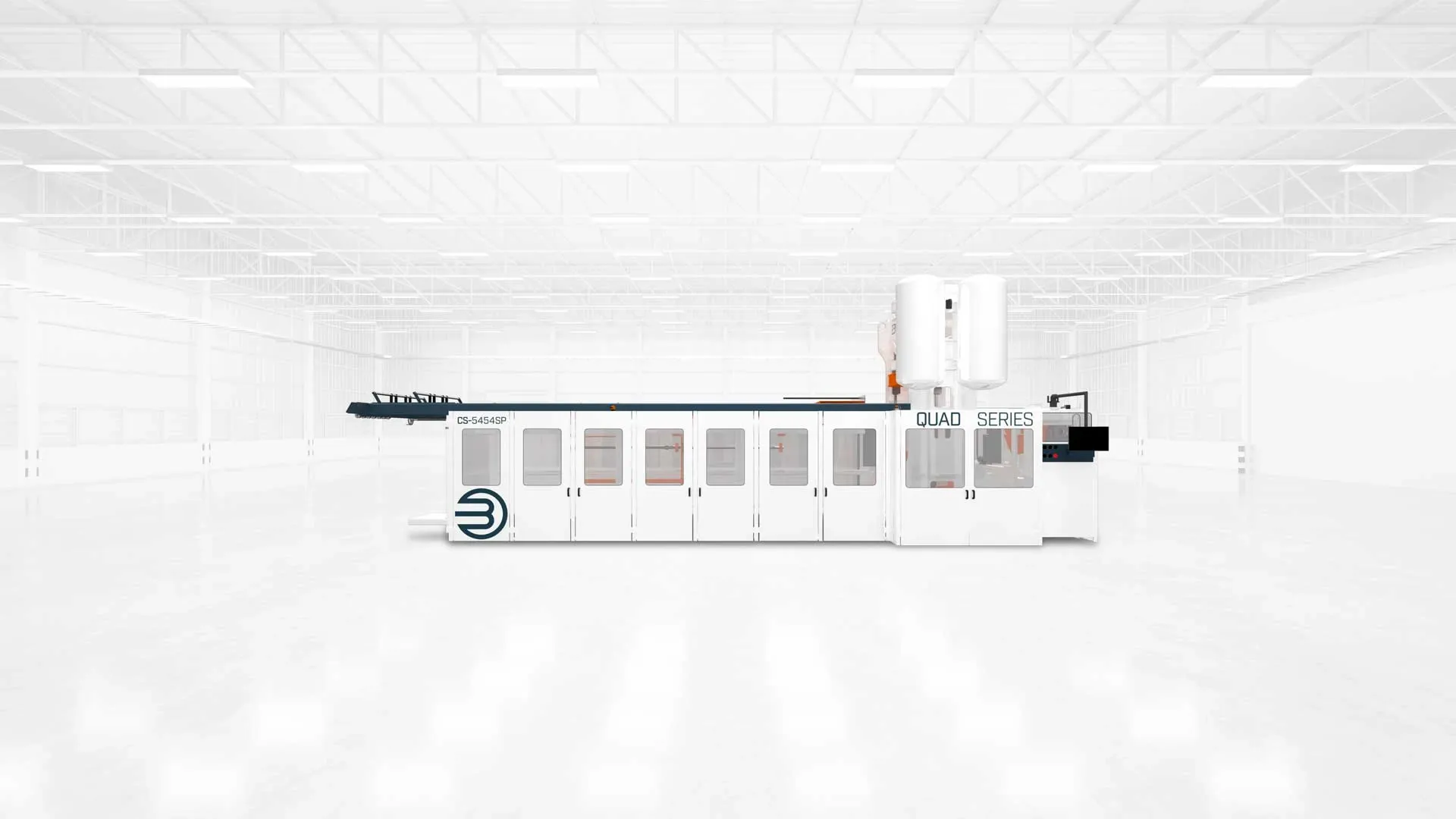

BMG's CS Quad-Series

The Ultimate in Deep Draw, Detail & Productivity

BMG's Quad Series thermoformer is the ultimate in brute-strength and production output. The Quad Series combines high-tonnage coining technology with traditional thermoforming processes to produce highly-detailed parts. It delivers 180 tons of coining force and 260 tons of holding force, so no matter the material type or depth of draw the Quad Series will create consistent products with the utmost detail.

The girth of the steel in the frame, servo-driven platens, heavy-duty drive assemblies and bearings all work together to withstand immense force with virtually no deflection across a mold area up to 64 by 64 inches. The Quad Series offers many other unique innovations such as patented Servo Plug Drive which helps to improve material distribution within your product allowing you to pack all rows and reduce waste.

Partner the Quad Series former, LS-Series trim press, with our end of line automation and tooling for an unparalleled, integrated turnkey solution.

Benefits of Our Packaging Solutions

High-tonnage Coining Technology

180 Tons of Coining Force

Withstand Immense Force

With Virtually No Deflection Across a Mold Area up to 64 by 64 inches

260 Tons of Holding Force

State-of-the-Art Technology

Machine Video

Machine Video

Machinery Features:

Patented Servo Plug Drive

Increased process window with improved material distribution

High Performance Four Toggle Form Station

The Quad Series form station is the premier form station in the industry; smooth, precise movements with virtually zero platen deflection for your intricately detailed products consistently at high speeds

High Volume Vacuum & Air Reservoirs

Vacuum and air reservoirs are strategically sized and placed for rapid response and faster cycle times

Machine Options:

Form Station Stroke & Tonnage

Top or Bottom Servo Plug Drive (Patented)

Roller Infeed System

Sheet Edge Pre-Heaters

Hinged Rails

Dual Index Motors

Oven Coopng Plates

Independent Motorized Rail Adjustment

p, CE, CSA, & HSE Approvals

International Voltages Available

Brown® CS Quad-Series Specifications
  CS-4042 CS-5050 CS-5454 CS-6464
Maximum Mold Size
(Width x Length)
40” x 42”
1016mm x 1067mm
50" x 50"
1270mm x 1270mm
54" x 54"
1372mm x 1372mm
64" x 64"
1626mm x 1626mm
Strength 180T/1600KN 260T/2310KN 260T/2310KN 260T/2310KN
Coining Force 100T/890 KN 180T/1600KN 180T/1600KN 180T/1600KN
Platen Stroke -
Top / Bottom*
7.38" / 7.38"
187mm / 187mm
9.75" / 9.75"
248mm / 248mm
9.75" / 9.75"
248mm / 248mm
9.75" / 9.75"
248mm / 248mm
Maximum Forming Pressure 100 psi 100 psi 100 psi 100 psi
Sheet Width 43"
Oven Three stops or four stops
(top and bottom)
Four stops or five stops
(top and bottom)
Four stops or five stops
(top and bottom)
Four stops or five stops
(top and bottom)
Air Consumption @ 80 psi† 1.00 scfm 1.00 scfm 1.00 scfm 1.00 scfm

*Deep draw configurations available
†Air consumption does not include tooling functions
